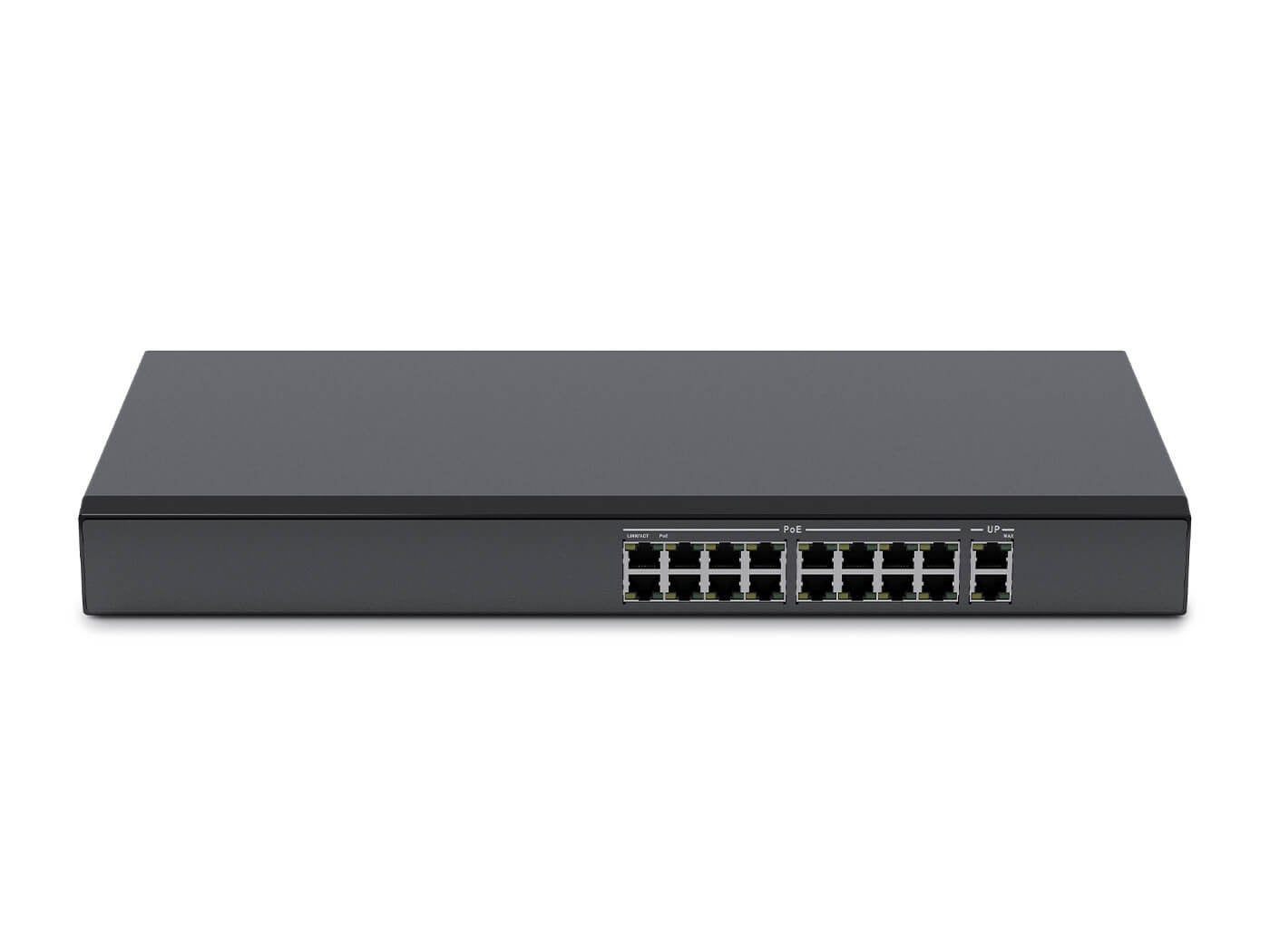

16-channel PoE switch

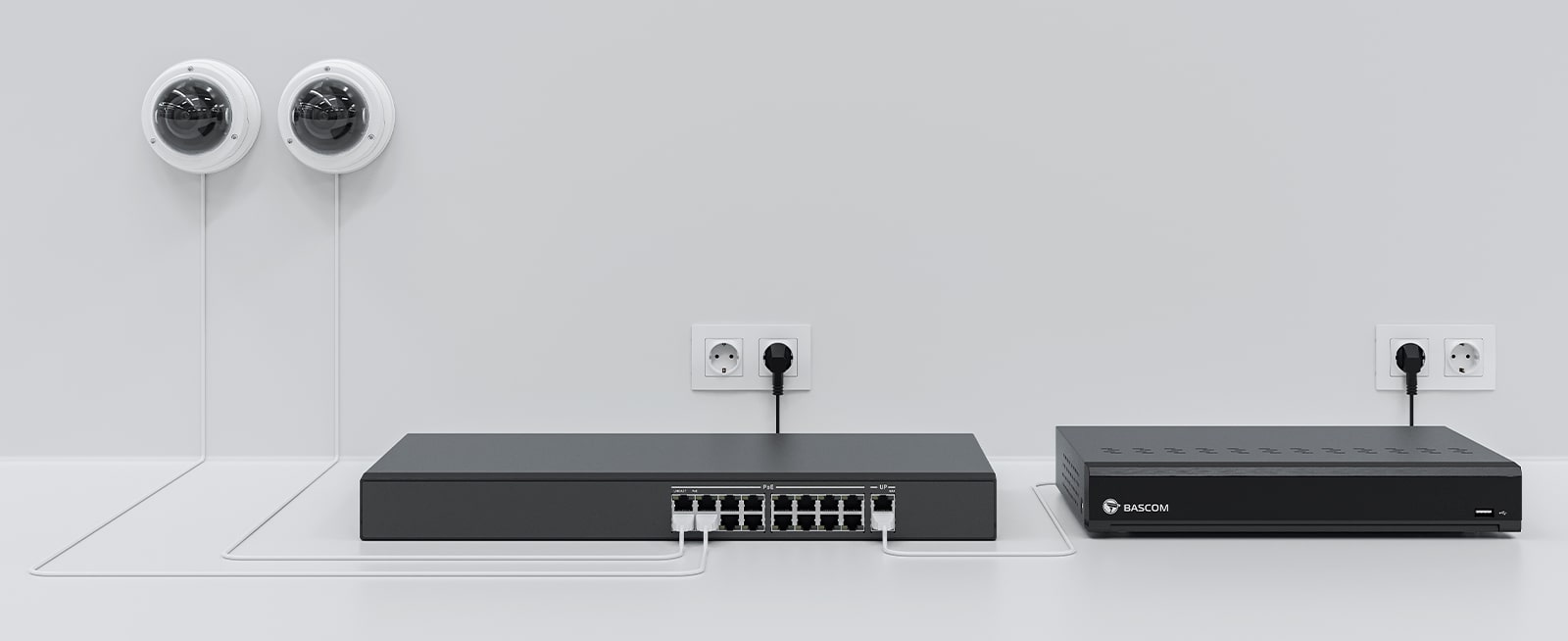

Application 1: Connecting multiple cameras to the recorder using a single cable
In a wired camera system, cameras are typically connected directly to the recorder. However, for larger setups, using a PoE switch can be more efficient—especially when there's a significant distance between a group of cameras and the recorder. By connecting multiple cameras to the PoE switch, you only need to run a single cable from the switch to the recorder.
Application 2: Integrating a camera system into an existing network
A PoE switch allows you to seamlessly integrate your camera system into an existing network. The switch connects the cameras to the network while also supplying them with power. By connecting the recorder to the same network, it automatically establishes a link with the cameras.
Application 3: Signal boosting for distances over 100 metres
For wired connections, the maximum cable length is 100 metres before signal strength begins to degrade. PoE switches can be used to amplify the signal. By installing a PoE switch every 100 metres, you can reliably extend the range of your system beyond this limit.
Technical specifications
Dimensions
Height: 44 mm.
Width: 440 mm.
Depth: 221 mm.
Connections
16 x Ethernet with PoE (10/100 Mbps).
2 x uplink (100/1000 Mbps).
1 x power supply (DC 52 V/4.8 A).
Other
Network standard: IEEE 802.3/ab/x/u/z.
PoE standard: IEEE 802.3at/af.
Maximum power per PoE port: 30 W.
Maximum total power: 230 W.
Maximum cable length: 100 meters.
Material: metal.
Operating temperature: 0 °C to 40 °C.
Warranty: 2 years.
