Powerline bullet camera
A professional CCTV system when cabling isn’t an option.

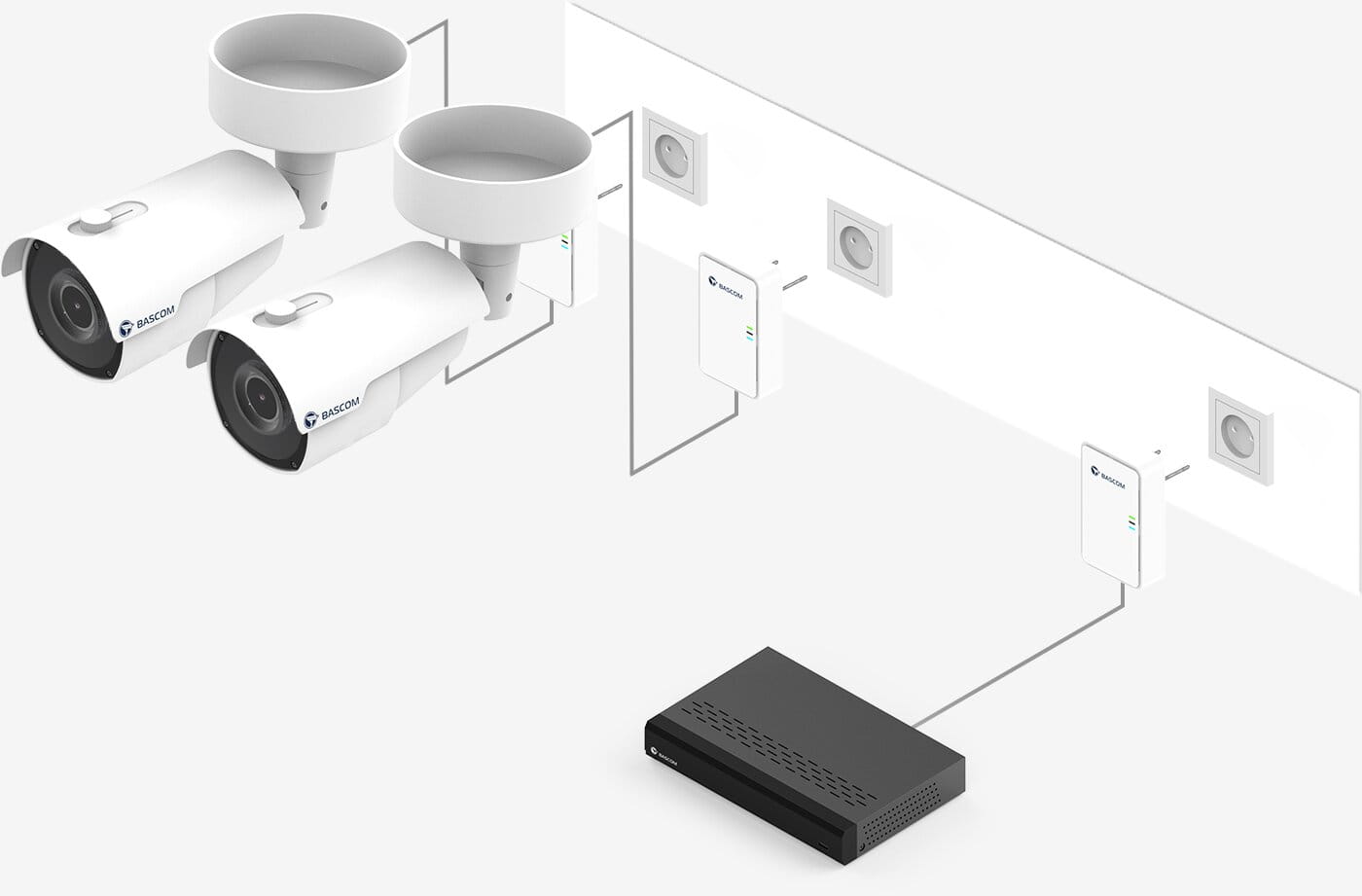

In an existing building, running new cables is often impractical. Wi-Fi seems the obvious alternative, but it weakens with every metre, every wall and every extra wireless device. With the Bascom® POWER system, you use the cables already in place: your mains wiring. Connect each camera to the nearest socket and it links straight to the recorder, even at the other end of the building. No chasing walls, just the stability of a wired connection.
Yes. As long as the barn, garage or warehouse is powered from the main building, every socket there becomes a connection point too. This works with cable runs of up to 500 metres.
Yes. The signal travels between circuits and, with a three-phase supply, between phases. So you can connect the cameras and the recorder to any socket.
That’s what the Bascom® POWER Outdoor Adapter is for. This version has no plug and connects directly to the mains cable, both indoors and outdoors. You can order the adapter separately, by phone or email.

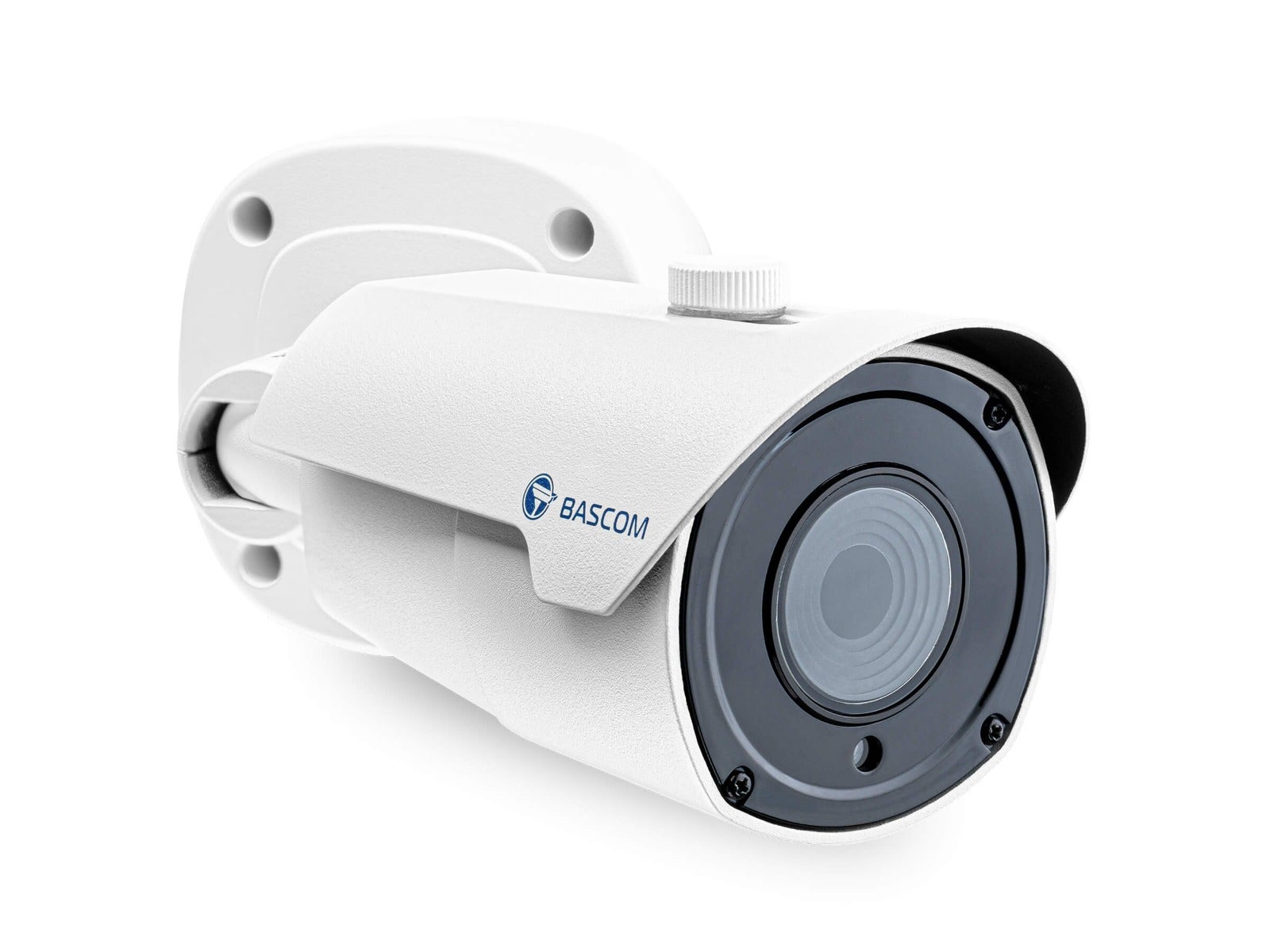

Prominent bullet model: Its elongated shape and clear viewing direction make it instantly noticeable, acting as a visual deterrent. Suitable for wall or ceiling mounting.
Industrial build quality for years of reliability.
A professional CCTV system is a long-term investment. That is why Bascom exclusively designs security cameras built to withstand extreme weather conditions and vandalism:
Solid aluminium housing with a rust and UV-resistant coating.
IP67-rated for 100% water and dust resistance.
Flawless performance in temperatures ranging from -30 °C to 55 °C.
The system that always works. Even without the internet.
CCTV should never rely on a patchy internet connection or external servers. That is why this system is built around a physical recorder that runs continuously, day and night. If the internet goes down, recording continues uninterrupted. You won't miss a single moment.
Yes. Although the system records completely independently, you can easily connect the recorder to your internet. This allows you to watch live securely from anywhere in the world via the app for your smartphone and tablet, or the software for your computer. Find out more about this further down the page.
As standard, the system stores several weeks of footage. Would you like to keep recordings for longer? The storage capacity can easily be expanded. Once the storage is full, the oldest footage is automatically overwritten. This means you never have to free up space yourself.
No. You purchase the CCTV system with a one-off payment and instantly become the full owner. Because the footage is stored locally on the recorder, you do not need a subscription. Furthermore, the app and all features are included as standard. There are absolutely no hidden monthly fees.
Your recordings belong to you. Not to a tech giant.
Many modern systems continuously send your private footage to third parties for analysis and storage. Bascom is committed to absolute privacy. The cameras are equipped with AI chips that perform all analyses independently, and the recorder stores your footage locally. This ensures that everything remains securely within your own premises.
No, Bascom does not have access to your CCTV system. Your footage only leaves the recorder when you explicitly choose to do so.
Yes, you can. You can easily connect the system to your Dropbox, Google Drive, or your own (S)FTP server.
Yes, local storage provides the perfect foundation for this: after all, your footage does not end up with a third party. Furthermore, the system includes all the features required to comply with regulations. You decide who has access, how long recordings are kept, and you can obscure specific parts of the image using privacy masking.
Crystal-clear evidence you can actually use.
A camera is useless if strong backlighting makes a face unrecognisable or if the image turns into grainy noise in the dark. That is why Bascom's hardware guarantees clear footage, even under the most challenging conditions:
True Full HD resolution with smooth, stutter-free footage.
Light-sensitive image sensors with active noise reduction.
Powerful infrared night vision up to 20 metres in complete darkness.
Use the system your way.
Connect a monitor, or connect the recorder to the internet to watch live and review footage from anywhere in the world. The Bascom app and software connect directly to your own system. Fast and secure.
Locally via a monitor or TV
Connect your screen directly to the recorder using the included HDMI cable.
Worldwide via your smartphone
Easily watch live via the Bascom app for iOS (Apple) and Android.
Worldwide via your computer
Manage the system using the software for Windows, macOS, and Linux.
Instant alerts upon motion.
Receive a notification on your smartphone the moment a camera detects movement. You have complete control over the alerts: for each camera, you determine exactly which parts of the image are monitored for motion, how sensitive the detection is, and the specific times you want to be notified.
Professional end result without hiring an installer.
No waiting times, no call-out charges, and no strangers on your premises. Over 95% of our customers install this system entirely themselves, even without prior experience with CCTV. And if you have a question during installation? Bascom's specialists are ready to guide you step by step.
Step 1: Mount the cameras.

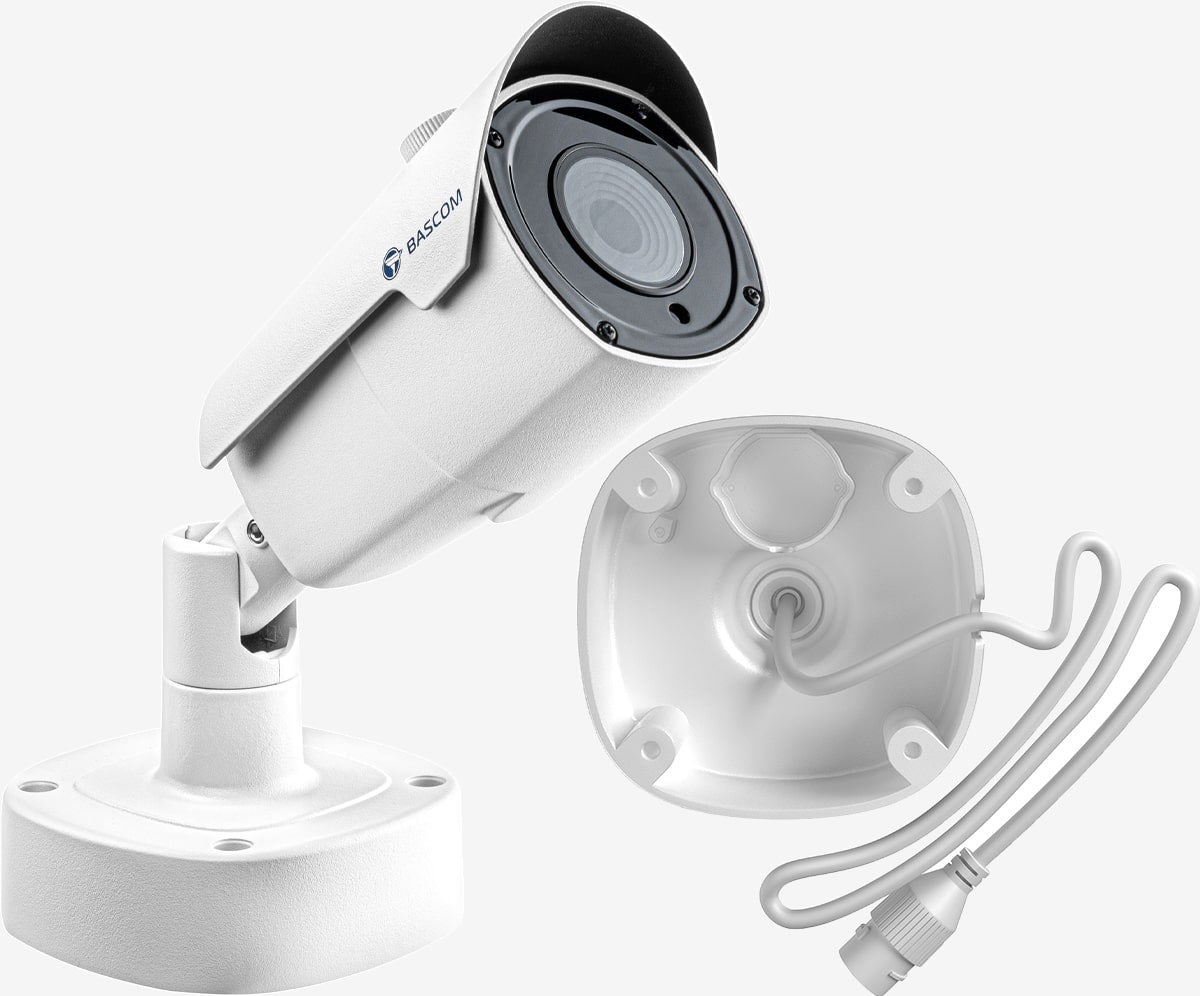

Attach the cameras to the wall or ceiling. Because the lens can be rotated in all directions, you can adjust the image perfectly from any mounting angle. The connection cable can be hidden invisibly through the wall or routed through the side of the housing.
Step 2: Connect the cameras.
Supply power to the cameras. From this moment on, the system uses your building's existing electrical wiring as a data connection. The cameras transmit their footage directly over the power lines to the recorder.
Step 3: Connect the recorder.
As soon as you plug the recorder into the mains, it automatically detects the cameras. The system is immediately ready for use and starts recording straight away. If desired, connect a monitor to view the footage locally.
Step 4: Connect the app (optional).
Do you want to view the footage remotely? Simply connect the recorder to your internet. Scan the unique QR code with the Bascom app for a direct connection to your smartphone or tablet.
If you have a question while setting up the system or connecting the app, Bascom's specialists are available by phone every weekday to guide you step by step.
No anonymous call centre: You speak directly with certified Bascom technicians who know the system inside out.
No endless queues: Fast, expert help right when you need it, every weekday from 7:30 am to 4:30 pm.
Free and unlimited: Our support is, and will always remain, completely free of charge.
Call our specialists directly on 0121 368 0033 or send an email to info@bascom-cameras.co.uk.
Yes. The number of additional cameras you can connect depends on the available ports on your recorder. The included recorder is tailored to the size of the system by default:
1 to 4 cameras: recorder with 4 ports.
5 to 8 cameras: recorder with 8 ports.
9 to 16 cameras: recorder with 16 ports.
Are you planning a larger expansion in the future than the recorder can handle? It is always possible to equip the system with a larger recorder in advance. Please contact us to arrange this, or configure a custom system yourself.
Technical specifications
Dimensions
Dimensions: 123 x 78 x 78 mm (L x W x H)
Foot: 112 mm (diagonal)
Image quality
Image resolution: Full HD
Frame rate: 25 fps ?The frame rate, expressed in frames per second (fps), determines how smoothly video is displayed. A frequency of 25 fps is considered the industry standard for film and television, providing smooth motion without stuttering.
Image sensor type: standard
Wide lens
Angle of view: 112° (wide angle)
Color image: active from 0.1 lux ?This indicates the minimum amount of light needed for the camera to operate in color mode before switching to infrared night vision.
Infrared night vision: up to 20 meters ?This is the maximum distance the camera can capture clearly in complete absence of light.
Housing
Material: aluminum alloy with powder coating
Cable security: the cable runs invisibly through the base and therefore cannot be cut.
Protection: dust and waterproof (complies with resistance standard IP67 according to IEC 60529)
Operating temperature: -30°C to 55°C
Location: suitable for indoor and outdoor use
Mounting options: suitable for wall and ceiling mounting
Connections
Connector: RJ45 UTP port with PoE ?PoE (Power over Ethernet) enables both images and power to be transmitted over a single UTP cable, eliminating the need for a separate power supply for the camera.
Cable included to connect to the Bascom® POWER adapter: yes
Cable type: UTP category 5e (Ø 6 mm)
Cable length: 10 meters (wireless) or 20 meters (wired)
If desired, you can replace the standard included cable with a longer one.
Flexibility: you can also connect the camera directly to the recorder if needed.
Bascom® POWER (only available in wireless version)
Operation: you connect the camera to the power outlet using a special adapter*, after which it connects to the recorder through your existing electrical wiring.
If you do not have a power outlet and want to connect the camera directly to the power grid, we have a separate solution for that. Please take this. Contact With us.
Security: encrypted connection
Transmission speed: 1200 Mbps
Reliability: use the grounding wire if available, which ensures an extra stable connection.
Compatibility: works across different electrical groups and phases.
Coverage: up to 500 meters of electricity line, within the own power grid.
Ease of use: camera and recorder connect automatically without the need for manual intervention. pairing
Other
Power consumption: 3W (normal) to 7W (with infrared night vision enabled)
Certification: CE (complies with EU safety standards)
Warranty: 2 years
Downloads
Documentation
Want to talk it through with a specialist?
Every situation is different. Find out in a short conversation which cameras are best suited to your needs and the ideal locations to position them. Call 0121 368 0033 (Monday to Friday from 7:30 am to 4:30 pm) or send a message:
Response within 1 hour (during opening hours)
