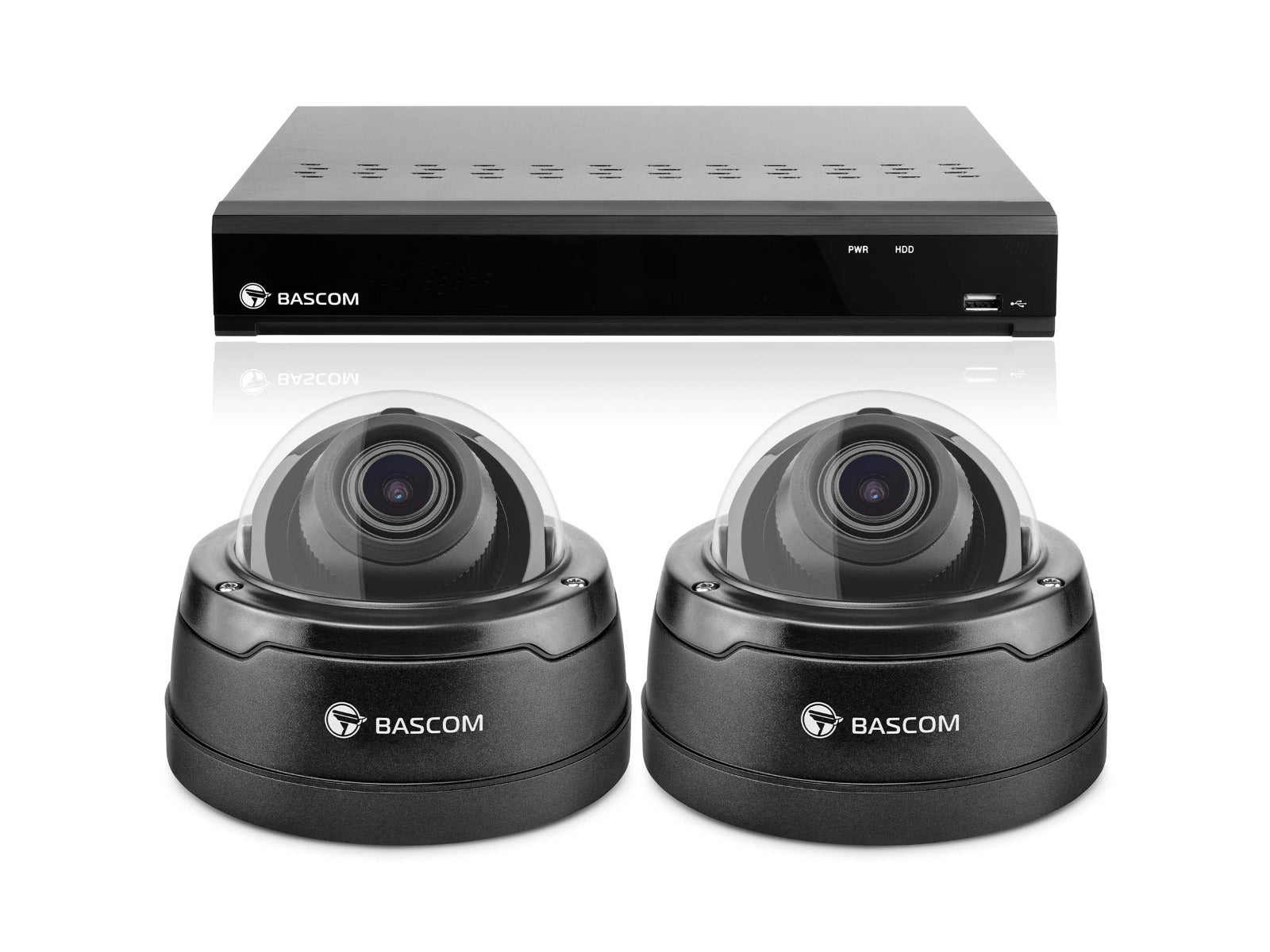

Wired 2-dome system PRO

Yes. Although the system records completely independently, you can easily connect the recorder to your internet. This allows you to watch live securely from anywhere in the world via the app for your smartphone and tablet, or the software for your computer. Find out more about this further down the page.

As standard, the system stores several weeks of footage. Would you like to keep recordings for longer? The storage capacity can easily be expanded. Once the storage is full, the oldest footage is automatically overwritten. This means you never have to free up space yourself.

No. You purchase the CCTV system with a one-off payment and instantly become the full owner. Because the footage is stored locally on the recorder, you do not need a subscription. Furthermore, the app and all features are included as standard. There are absolutely no hidden monthly fees.

No, Bascom does not have access to your CCTV system. Your footage only leaves the recorder when you explicitly choose to do so.

Yes, you can. You can easily connect the system to your Dropbox, Google Drive, or your own (S)FTP server.

Yes, local storage provides the perfect foundation for this: after all, your footage does not end up with a third party. Furthermore, the system includes all the features required to comply with regulations. You decide who has access, how long recordings are kept, and you can obscure specific parts of the image using privacy masking.

No. Many cheaper cameras use digital zoom, just like a smartphone. This simply enlarges the image, quickly resulting in blocky pixels. The PRO and PLUS cameras feature an optical zoom lens. This involves the glass lenses physically moving inside the camera to bring the image closer. You get a larger view of the detail without losing any sharpness whatsoever.

Absolutely. No two locations are the same. A standard camera has a fixed viewing angle, meaning you often miss a small section or end up unnecessarily filming a blank wall. A zoom lens allows you to tailor the image exactly to your situation. You eliminate redundant edges, ensuring the camera focuses its maximum sharpness purely on the area that is important to you.

Yes. A standard camera tries to get everything in the frame – from close up to far away – reasonably sharp. In practice, this is always a compromise. A zoom camera works more precisely: it allows you to focus the lens exactly at the distance you choose. Whether that is the gate at the front or the car at the back. As a result, the image at that one crucial focal point is always visibly crisper and sharper than with a standard camera.

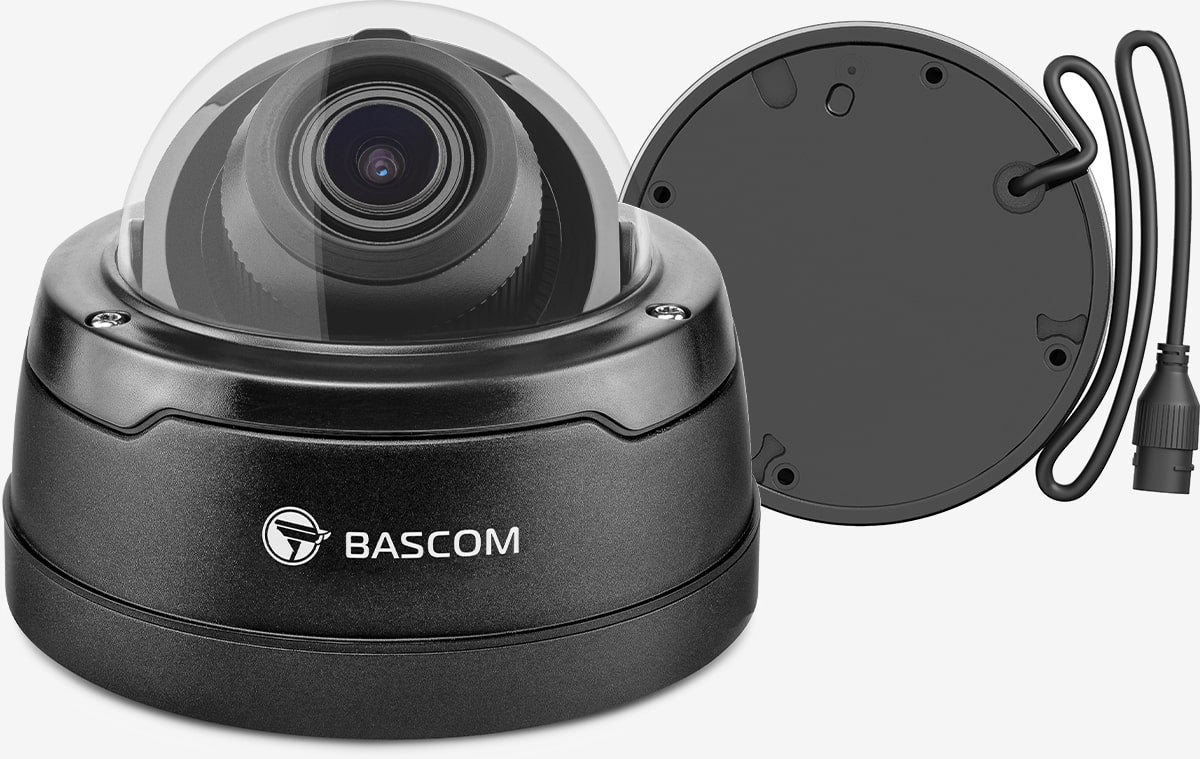

Dimensions

Height: 118 mm

Diagonal (bottom): 150 mm

Image quality

Image resolution: Full HD

Frame rate: 25 fps ?The frame rate, expressed in frames per second (fps), determines how smoothly video is displayed. A frequency of 25 fps is considered the industry standard for film and television, providing smooth motion without stuttering.

Type of image sensor: back-illuminated ?A back-illuminated image sensor has a unique structure, where the light-sensitive part is closer to the light source, improving the efficiency of light capture. This ensures that the camera performs better in low light conditions and only needs to switch to night mode later.

Image processing technologies:

• High Dynamic Range (HDR) ?HDR technology significantly improves image quality by increasing the dynamic range between the brightest and darkest parts of the image. This results in images where details in very bright and very dark areas are preserved.

• Automatic Gain Control (AGC) ?AGC automatically amplifies the signal of the image sensor in low-light situations. This allows the camera to consistently deliver bright images, even in a dark environment.

• 3D Digital Noise Reduction (3D-DNR) ?Noise is the grainy structure that occurs when there is little light. 3D-DNR is an advanced algorithm that analyzes camera images and removes noise. This results in cleaner and sharper images in the dark.

Type lens: Motorized zoom lens with autofocus ?With a motorized zoom lens, you can control the zoom remotely. The autofocus ensures that the camera refocuses accurately after each zoom adjustment.

Zoom capacity: 5 times optical zoom ?Optical zoom uses the physical movement of lens elements to zoom, preserving image quality. This is in contrast to digital zoom, where sharpness is lost.

Field of view: 112° (wide angle) to 28° (zoomed in)

Color image: active from 0.002 lux ?This indicates the minimum amount of light needed for the camera to operate in color mode before switching to infrared night vision.

Infrared night vision: up to 30 meters ?This is the maximum distance the camera can capture clearly in complete absence of light.

Housing

Material: aluminum alloy with powder coating and a polycarbonate cover (250 times stronger than glass)

Cable security: the cable runs invisibly through the base and therefore cannot be cut.

Protection: dust and waterproof (complies with resistance standard IP67 according to IEC 60529)

Operating temperature: -30°C to 55°C

Location: suitable for indoor and outdoor use

Mounting options: suitable for wall and ceiling mounting

Connections

Connector: RJ45 UTP port with PoE ?PoE (Power over Ethernet) enables both images and power to be transmitted over a single UTP cable, eliminating the need for a separate power supply for the camera.

Cable included to connect to the Bascom® POWER adapter: yes

Cable type: UTP category 5e (Ø 6 mm)

Cable length: 10 meters (wireless) or 20 meters (wired)
If desired, you can replace the standard included cable with a longer one.

Flexibility: you can also connect the camera directly to the recorder if needed.

Bascom® POWER (only available in wireless version)

Operation: you connect the camera to the power outlet using a special adapter*, after which it connects to the recorder through your existing electrical wiring.
If you do not have a power outlet and want to connect the camera directly to the power grid, we have a separate solution for that. Please contact us for this.

Security: encrypted connection

Transmission speed: 1200 Mbps

Reliability: use the grounding wire if available, which ensures an extra stable connection.

Compatibility: works across different electrical groups and phases.

Coverage: up to 500 meters of electricity line, within your own power grid.

Ease of use: camera and recorder connect automatically without the need for manual intervention. pairing

Other

Power consumption: 3W (normal) to 7W (with infrared night vision enabled)

Certification: CE (complies with EU safety standards)

Warranty: 2 years

Dimensions

227 × 300 × 53 mm (L × W × H)

Connections

4 x RJ45 UTP port with PoE (cameras) ?PoE (Power over Ethernet) enables both images and power to be transmitted over a single UTP cable, eliminating the need for a separate power supply for the camera.
1 x RJ45 UTP port (internet)
1 x HDMI
1 x VGA
2 x USB
4 x alarm input
1 x alarm output
1 x audio output
1 x power supply (DC 48 V / 1.2 A)
1 x SATA (already equipped with a 1 TB hard drive)

Recording & storage

Storage capacity: 1 TB (1000 GB) ?This provides enough space for several weeks of recordings. The exact duration depends on various factors, such as the number of cameras, the recording type (e.g. continuous or motion-triggered), and the amount of motion throughout the day.

Recording resolution: up to Ultra HD (4K) at 25 fps per camera

Recording options (adjustable per camera):

• Continuous recording

• Motion-triggered recording

• Scheduled recording

• Record on external alarm

• Do not record

Pre-record function ?The pre-record function, activated when 'recording on motion' is enabled, continuously saves the last 10 seconds of footage in a temporary memory. When motion is detected, these images are automatically added to the recording, so the recording starts before the visible moment of motion. This ensures that you always have a complete picture.

Privacy masking: hide parts of the image with a black block to ensure privacy.

Overwrite mode: automatically overwrites the oldest images when storage capacity is reached

Deletion policy: can automatically delete images after a preset period.

Use with screen

Compatibility: any TV or monitor with HDMI or VGA connection can be directly connected to the recorder

Main functions:

• View live footage

• Review recorded footage

• Back up images to USB stick

• Manage system settings

Good to know:

• No internet connection needed

• Operation with the included mouse

• Advanced options to display images (full screen, grid, automatic switching, etc.)

Use with smartphone

Compatibility: app for Android and iOS

Main functions:

• View live footage

• Review recorded footage

• Back up images to your smartphone

• Receive push notifications when motion is detected.

• Manage system settings

Good to know:

• Supports multiple camera systems

• No need to adjust router settings. ?Thanks to P2P technology, the recorder can communicate directly with your smartphone or computer without the need to set up port forwarding on your router.

• High-speed European P2P servers

• No monthly fees

Use with computer

Compatibility: software for Windows and macOS.

Main functions:

• View live footage

• Review recorded footage

• Back up images to your computer

• Manage system settings

Good to know:

• Supports multiple camera systems

• No need to adjust router settings. ?Thanks to P2P technology, the recorder can communicate directly with your smartphone or computer without the need to set up port forwarding on your router.

• High-speed European P2P servers

• No monthly fees

Other

Interface language: English

Security: users and access rights

Continuous operation: automatically restarts after power outage and provides an audible alert if cameras go offline.

Operating temperature: -20°C to 70°C

Power consumption: 10 W

Certification: CE (complies with EU safety standards)

Warranty: 2 years
