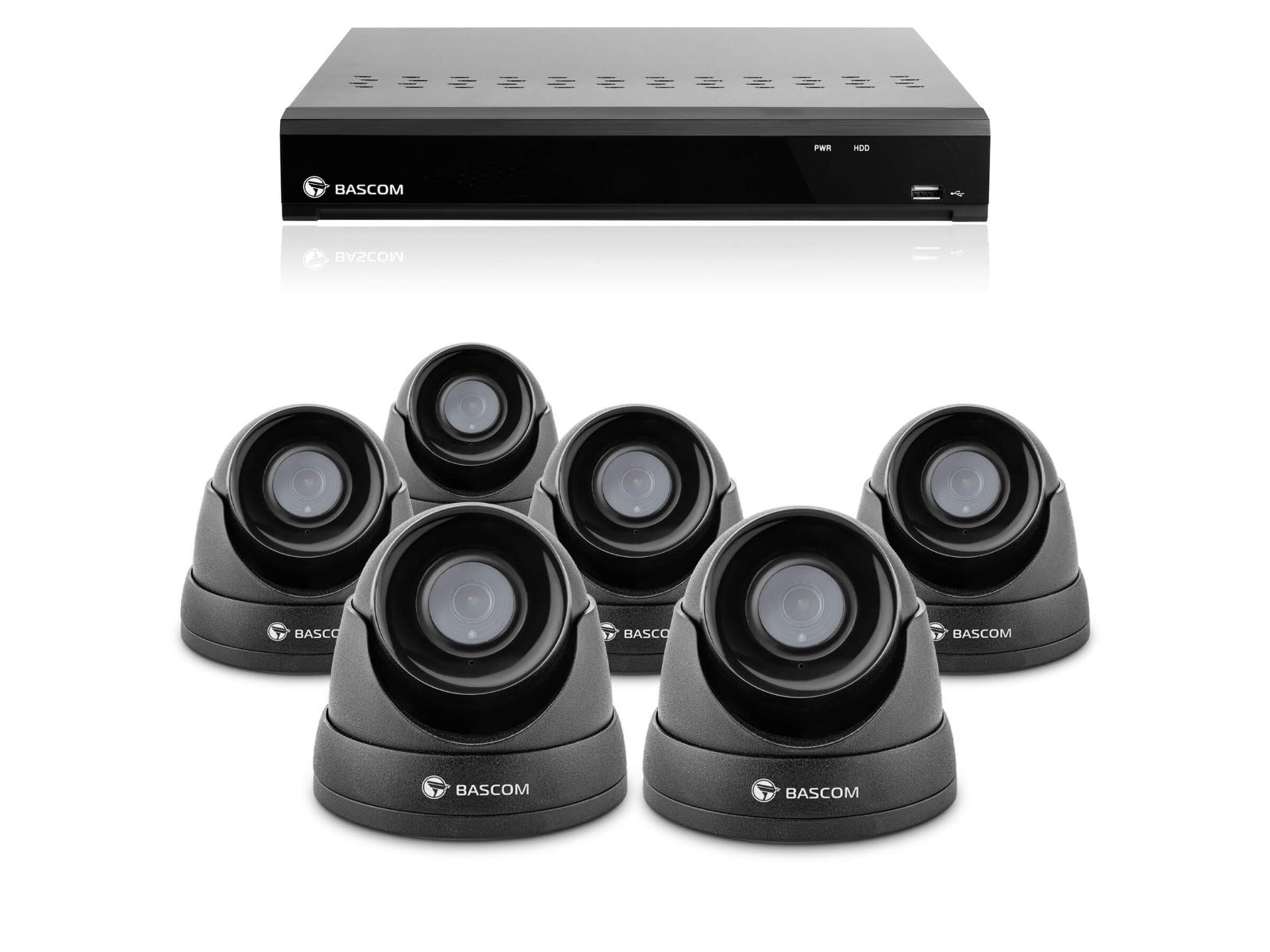

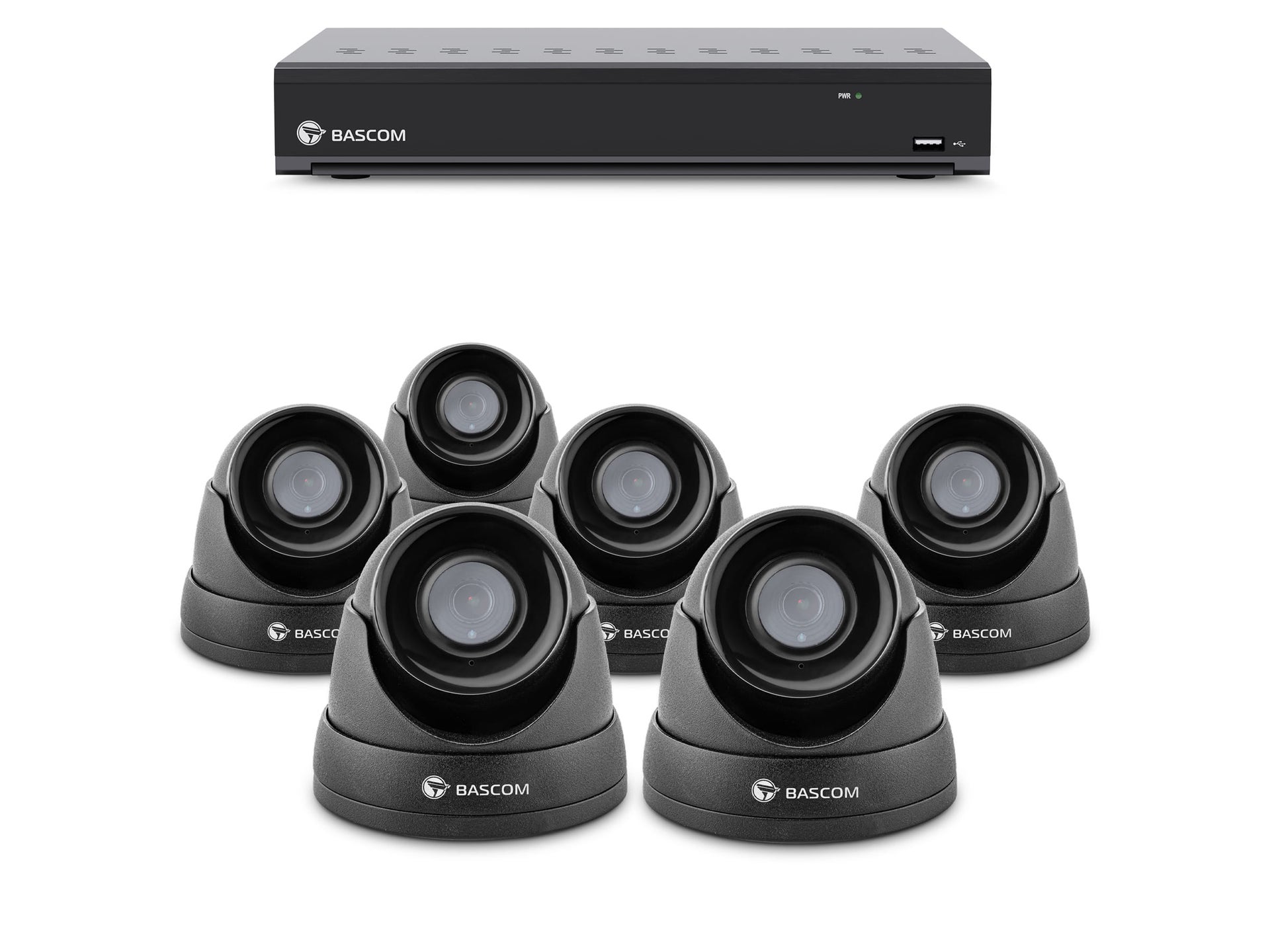

Wired 6-dome system
Easily connect with just one cable per camera.
Thanks to Power over Ethernet (PoE), you can connect each camera using a single UTP cable. This cable transmits the footage to the recorder and directly supplies the camera with power. As a result, a separate power socket near the camera is no longer required.

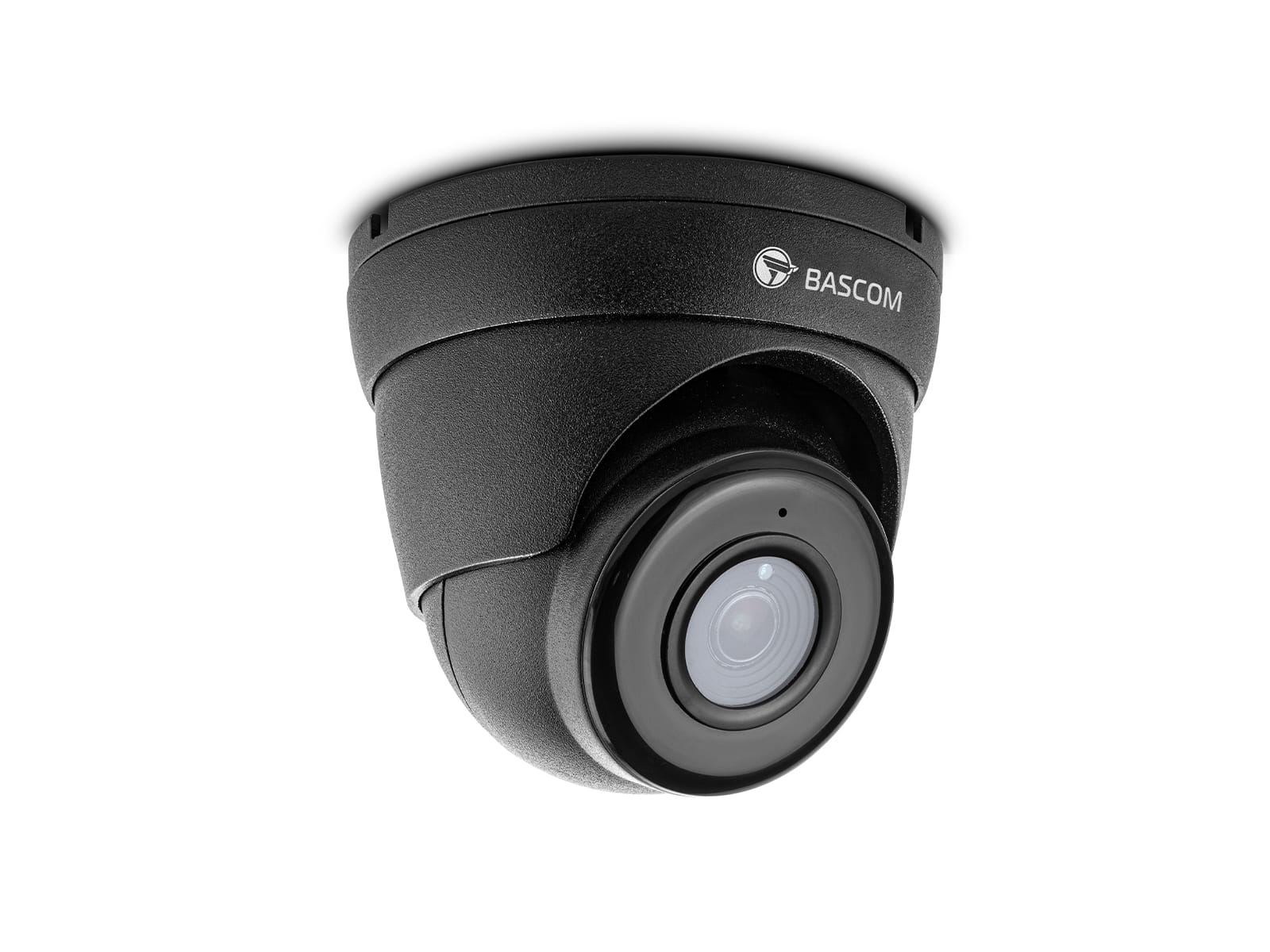

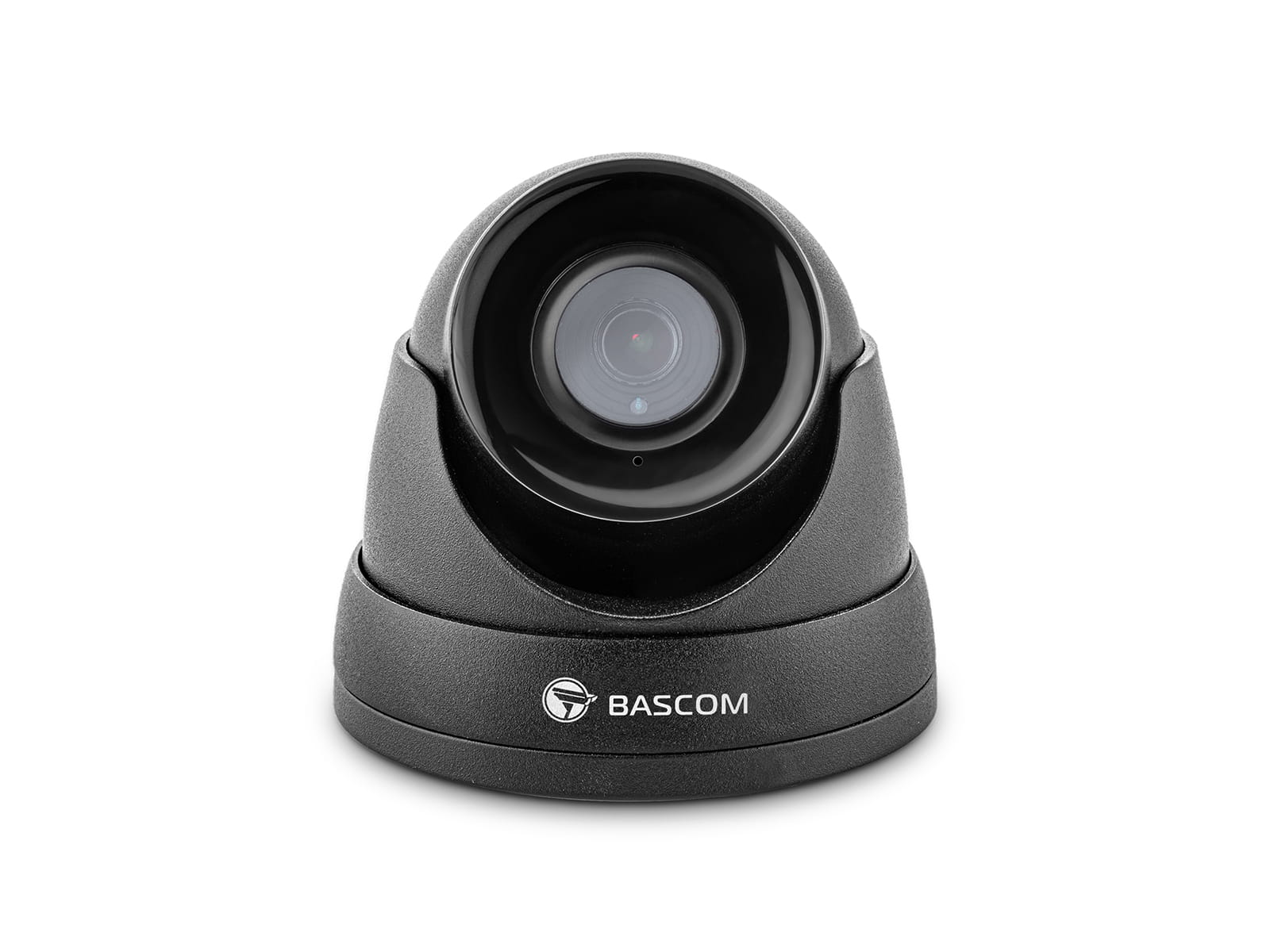

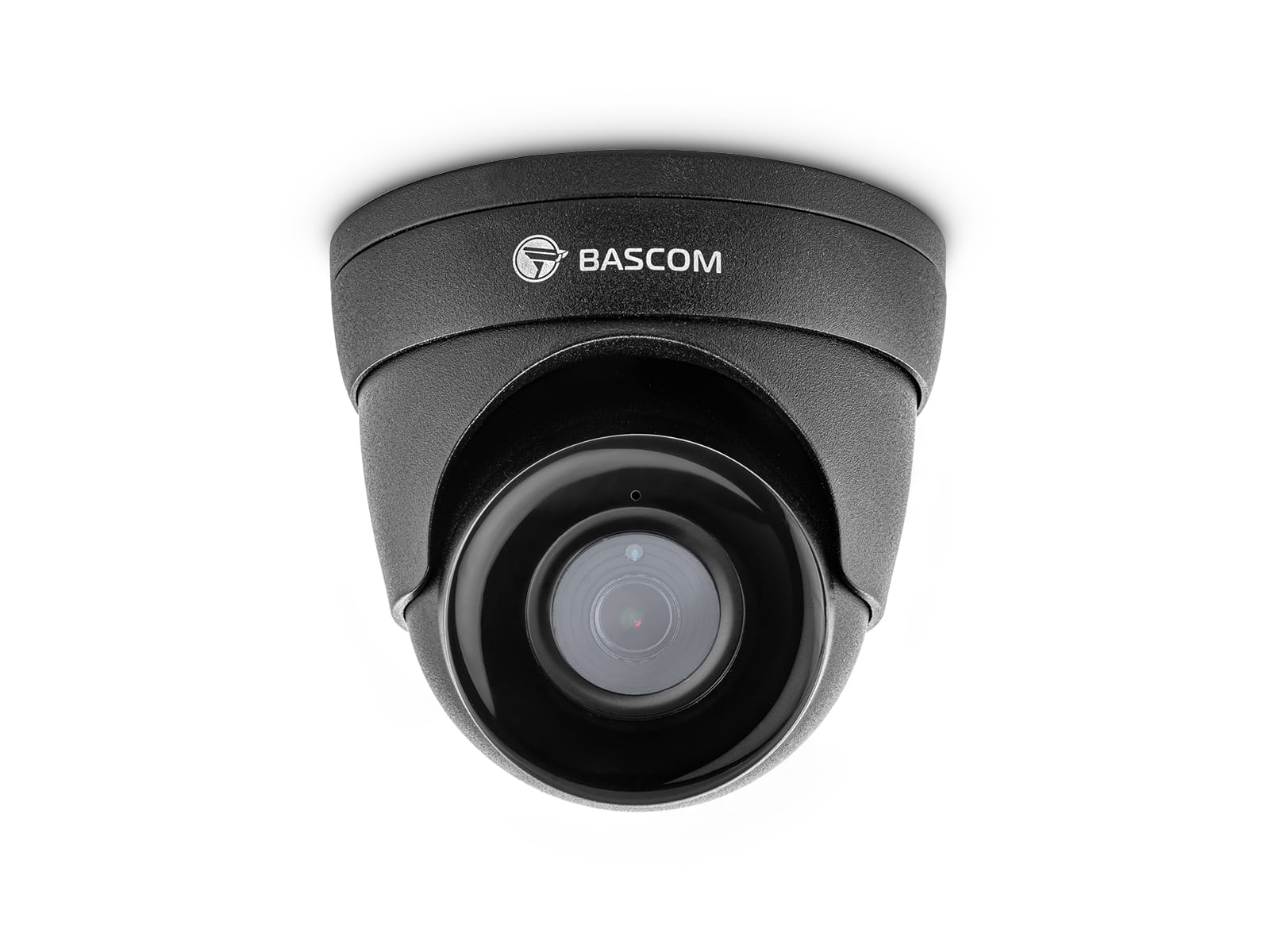

Compact dome model: Thanks to its small size, it is barely noticeable and provides a subtle solution for virtually any location. Suitable for wall or ceiling mounting.
Industrial build quality for years of reliability.
A professional CCTV system is a long-term investment. That is why Bascom exclusively designs security cameras built to withstand extreme weather conditions and vandalism:
Solid aluminium housing with a rust and UV-resistant coating.
IP67-rated for 100% water and dust resistance.
Flawless performance in temperatures ranging from -30 °C to 55 °C.
The system that always works. Even without the internet.
CCTV should never rely on a patchy internet connection or external servers. That is why this system is built around a physical recorder that runs continuously, day and night. If the internet goes down, recording continues uninterrupted. You won't miss a single moment.
Yes. Although the system records completely independently, you can easily connect the recorder to your internet. This allows you to watch live securely from anywhere in the world via the app for your smartphone and tablet, or the software for your computer. Find out more about this further down the page.
As standard, the system stores several weeks of footage. Would you like to keep recordings for longer? The storage capacity can easily be expanded. Once the storage is full, the oldest footage is automatically overwritten. This means you never have to free up space yourself.
No. You purchase the CCTV system with a one-off payment and instantly become the full owner. Because the footage is stored locally on the recorder, you do not need a subscription. Furthermore, the app and all features are included as standard. There are absolutely no hidden monthly fees.
Your recordings belong to you. Not to a tech giant.
Many modern systems continuously send your private footage to third parties for analysis and storage. Bascom is committed to absolute privacy. The cameras are equipped with AI chips that perform all analyses independently, and the recorder stores your footage locally. This ensures that everything remains securely within your own premises.
No, Bascom does not have access to your CCTV system. Your footage only leaves the recorder when you explicitly choose to do so.
Yes, you can. You can easily connect the system to your Dropbox, Google Drive, or your own (S)FTP server.
Yes, local storage provides the perfect foundation for this: after all, your footage does not end up with a third party. Furthermore, the system includes all the features required to comply with regulations. You decide who has access, how long recordings are kept, and you can obscure specific parts of the image using privacy masking.
Crystal-clear evidence you can actually use.
A camera is useless if strong backlighting makes a face unrecognisable or if the image turns into grainy noise in the dark. That is why Bascom's hardware guarantees clear footage, even under the most challenging conditions:
True Full HD resolution with smooth, stutter-free footage.
Light-sensitive image sensors with active noise reduction.
Powerful infrared night vision up to 20 metres in complete darkness.
Video and sound for the complete context
Video alone sometimes only tells half the story. That is why this camera is equipped with an integrated microphone. This allows you to pick up important warning signals, such as unusual commotion or breaking glass, even if the action takes place just outside the camera's field of view.
Because not every situation requires audio recording, the microphone is disabled by default. You have full control over whether to activate this feature.
Use the system your way.
Connect a monitor, or connect the recorder to the internet to watch live and review footage from anywhere in the world. The Bascom app and software connect directly to your own system. Fast and secure.
Locally via a monitor or TV
Connect your screen directly to the recorder using the included HDMI cable.
Worldwide via your smartphone
Easily watch live via the Bascom app for iOS (Apple) and Android.
Worldwide via your computer
Manage the system using the software for Windows, macOS, and Linux.
Instant alerts upon motion.
Receive a notification on your smartphone the moment a camera detects movement. You have complete control over the alerts: for each camera, you determine exactly which parts of the image are monitored for motion, how sensitive the detection is, and the specific times you want to be notified.
Professional end result without hiring an installer.
No waiting times, no call-out charges, and no strangers on your premises. Over 95% of our customers install this system entirely themselves, even without prior experience with CCTV. And if you have a question during installation? Bascom's specialists are ready to guide you step by step.
Step 1. Mount the cameras
Secure the cameras to a wall or ceiling. You can then take your time to position them precisely. The lens can be rotated in any direction, so even if the camera is mounted at an angle or upside down, the image will still appear level. You can route the cable out the side or straight through the wall behind the camera, leaving nothing visible.
Step 2. Connect the cameras to the recorder
Thanks to Power over Ethernet (PoE), each camera requires only a single cable to connect to the recorder. This cable transmits video from the camera while simultaneously delivering power from the recorder – no power socket is needed near the camera. The recorder starts recording immediately and no configuration is required. If you like, you can now connect a monitor or TV to the recorder and control it using a mouse.
Step 3. Connect the recorder to the internet (optional)
Want to view your footage remotely via smartphone or computer? Simply connect the recorder to your internet – either directly using the included Ethernet cable to your modem or router, or wirelessly using our Wi-Fi antenna. Once connected, download the Bascom app, scan the QR code on the recorder, and you're ready to view live images.
If you have a question while setting up the system or connecting the app, Bascom's specialists are available by phone every weekday to guide you step by step.
No anonymous call centre: You speak directly with certified Bascom technicians who know the system inside out.
No endless queues: Fast, expert help right when you need it, every weekday from 7:30 am to 4:30 pm.
Free and unlimited: Our support is, and will always remain, completely free of charge.
Call our specialists directly on 0121 368 0033 or send an email to info@bascom-cameras.co.uk.
Yes. The number of additional cameras you can connect depends on the available ports on your recorder. The included recorder is tailored to the size of the system by default:
1 to 4 cameras: recorder with 4 ports.
5 to 8 cameras: recorder with 8 ports.
9 to 16 cameras: recorder with 16 ports.
Are you planning a larger expansion in the future than the recorder can handle? It is always possible to equip the system with a larger recorder in advance. Please contact us to arrange this, or configure a custom system yourself.
Technical specifications
Dimensions
Height: up to 95 mm (depending on the direction of rotation)
Diagonal (bottom): 100 mm
Image quality
Image resolution: Full HD
Frame rate: 25 fps ?The frame rate, expressed in frames per second (fps), determines how smoothly video is displayed. A frequency of 25 fps is considered the industry standard for film and television, providing smooth motion without stuttering.
Image sensor type: standard
Lens type: wide-angle lens
Angle of view: 112° (wide angle)
Color image: active from 0.1 lux ?This indicates the minimum amount of light needed for the camera to operate in color mode before switching to infrared night vision.
Infrared night vision: up to 20 meters ?This is the maximum distance the camera can capture clearly in complete absence of light.
Housing
Material: aluminum alloy with powder coating
Cable security: the cable runs invisibly through the base and therefore cannot be cut.
Protection: dust and waterproof (complies with resistance standard IP67 according to IEC 60529)
Operating temperature: -30°C to 55°C
Location: suitable for indoor and outdoor use
Mounting options: suitable for wall and ceiling mounting
Connections
Connector: RJ45 UTP port with PoE ?PoE (Power over Ethernet) enables both images and power to be transmitted over a single UTP cable, eliminating the need for a separate power supply for the camera.
Cable included to connect to the Bascom® POWER adapter: yes
Cable type: UTP category 5e (Ø 6 mm)
Cable length: 10 meters (wireless) or 20 meters (wired)
If desired, you can replace the standard included cable with a longer one.
Flexibility: you can also connect the camera directly to the recorder if needed.
Bascom® POWER (only available in wireless version)
Operation: you connect the camera to the power outlet with a special adapter*, after which it connects to the recorder through your existing electrical wiring.
If you do not have a power outlet and want to connect the camera directly to the power grid? We have a separate solution for that. Please take. Contact With us.
Security: encrypted connection
Transmission speed: 1200 Mbps
Reliability: also uses the ground wire if available, which ensures an extra stable connection.
Compatibility: works across different electrical circuits and phases.
Coverage: up to 500 meters of electricity line, within your own power grid.
Ease of use: camera and recorder connect automatically without the need for manual intervention. pairing
Other
Power consumption: 3W (normal) to 7W (with infrared night vision enabled)
Certification: CE (complies with EU safety standards)
Warranty: 2 years

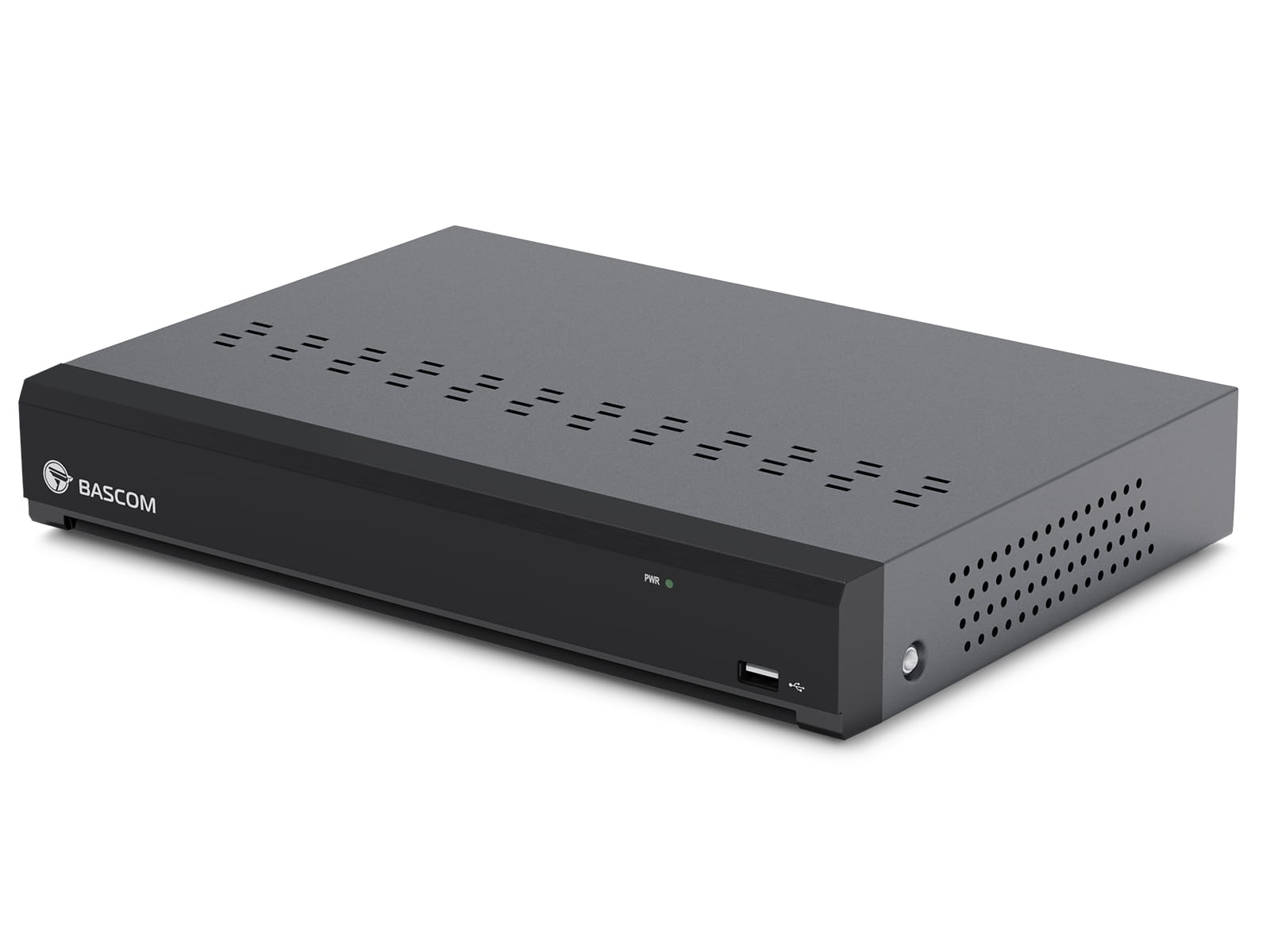

Dimensions
227 × 300 × 53 mm (L × W × H)
Connections
8 x RJ45 UTP port with PoE (cameras) ?PoE (Power over Ethernet) enables both images and power to be transmitted over a single UTP cable, eliminating the need for a separate power supply for the camera.
1 x RJ45 UTP port (internet)
1 x HDMI
1 x VGA
2 x USB
8 x alarm input
1 x alarm output
1 x audio output
1 x power supply (DC 48 V / 2 A)
1 x SATA (already equipped with a 2 TB hard drive)
Recording & storage
Storage capacity: 2 TB (2000 GB) ?This provides enough space for several weeks of recordings. The exact duration depends on various factors, such as the number of cameras, the recording type (e.g. continuous or motion-triggered), and the amount of motion throughout the day.
Recording resolution: up to Ultra HD (4K) at 25 fps per camera
Recording options (adjustable per camera):
Continuous recording
Motion-triggered recording
Scheduled recording
Record on external alarm
Do not record
Pre-record function ?The pre-recording function, activated when 'recording on motion' is enabled, continuously saves the last 10 seconds of footage in a temporary memory. When motion is detected, these images are automatically added to the recording, so that the recording starts before the visible moment of motion. This way, you are always guaranteed a complete picture.
Privacy masking: hide parts of the image with a black block to ensure privacy.
Overwrite mode: automatically overwrites the oldest images when storage capacity is reached.
Deletion policy: can automatically delete images after a preset period.
Use with screen
Compatibility: any TV or monitor with HDMI or VGA connection can be directly connected to the recorder
Main functions:
View live footage
Review recorded footage
Back up images to USB stick
Manage system settings
Good to know:
No internet connection needed
Operation with the included mouse
Advanced options to display images (full screen, grid, automatic switching, etc.)
Use with smartphone
Compatibility: app for Android and iOS
Main functions:
View live footage
Review recorded footage
Back up images to your smartphone
Receive push notifications when motion is detected
Manage system settings
Good to know:
Supports multiple camera systems
No need to adjust router settings. ?Thanks to P2P technology, the recorder can communicate directly with your smartphone or computer without the need to set up port forwarding on your router.
High-speed European P2P servers
No monthly fees
Use with computer
Compatibility: software for Windows and macOS.
Main functions:
View live footage
Review recorded footage
Back up images to your computer.
Manage system settings
Good to know:
Supports multiple camera systems
No need to adjust router settings. ?Thanks to P2P technology, the recorder can communicate directly with your smartphone or computer without the need to set up port forwarding on your router.
High-speed European P2P servers
No monthly fees
Other
Interface language: English
Security: users and access rights
Continuous operation: automatically restarts after power outage and provides an audible signal if cameras go offline.
Operating temperature: -20°C to 70°C
Power consumption: 10 W
Certification: CE (complies with EU safety standards)
Warranty: 2 years
